Máy cắt bế khuôn
Created with Pixso. JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar

JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar

Tên thương hiệu: JIGUO
Số mẫu: SJG-1080
MOQ: 1
giá bán: $22000-$30000
Thời gian giao hàng: 30
Điều khoản thanh toán: L/C, T/T, Moneygram
Thông tin chi tiết
Nguồn gốc:
Trung Quốc
Chứng nhận:
CE
chi tiết đóng gói:
cuộn phim
Khả năng cung cấp:
20
Làm nổi bật:

semi-automatic blanking machine 1080x780mm

,

die cutting stripping machine 100 bar

,

JIGUO SJG-1080 blanking machine

Mô tả sản phẩm
JIGUO SEMI AUTOMATIC BLANKING MACHINE FOR VARIOUS MATERIALS INCLUDING BOXES OF DIFFERENT SPECIFICATIONS, WINDOWS, EURO HOLES (BUTTERFLY HOLES), AND FRONT/BACK IMPOSITIONS DIE CUTTING STRIPPING
Product Description

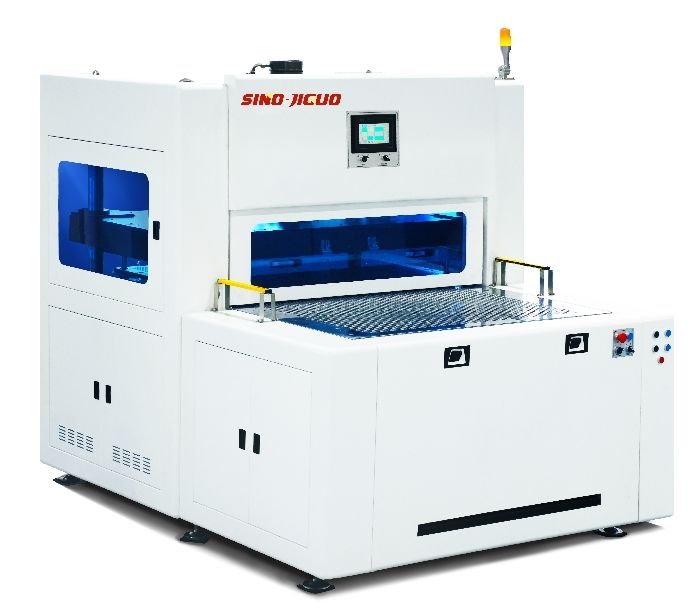

JIGUO SJG-1080 SEMI AUTOMATIC BLANKING MACHINE

Jiguo SJG-1080 semi-automatic waste stripping machine is a highly efficient waste stripping equipment that can perform one-time waste stripping on a variety of materials including paper boxes, windows, European-style holes (butterfly holes), front and back panels, etc.

JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar 0 JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar 1
Main Features
  • Demolding the entire panel in one go is simple and quick, significantly improving production efficiency.
  • Ejector-based placement allows for flexible handling of various production needs. No molds are required, significantly reducing operating costs.
  • JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar 2
  • High-precision linear guides and servo motors ensure smooth and precise movement.
  • The hydraulic system utilizes a variable-frequency motor and oil-cooling fan to ensure constant operating pressure.
  • The frame-type support base ensures precise blanking and ensures load-safety.
  • JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar 3
  • Multiple safety features, including a CE-compliant safety shield, a safety sensor switch at the feeder, and dual-button operation, ensure personal safety during operation.
  • A user-friendly retractable pedal and a user-friendly touchscreen interface make daily setup quick and easy.
  • JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar 4
Technical Specifications
Model SJG-1080
Max.Stack size 1080*780mm
Min. Stack height 80mm
Waste Removal Speed 5Times/ming
Max.Pressure 100 Bar
Overall Dimensions 2100x1760x1660mm
Net Weight 2580kg
Supply Voltage 380V
Frequency 50/60Hz
Total Power 4kw
Optional Devices
  • Larger Platform Pedals
  • Receiving conveyor belt
JIGUO SJG-1080 Semi-Automatic Blanking Machine 1080x780mm 100 Bar 5
